Trigger outs

nightworxx

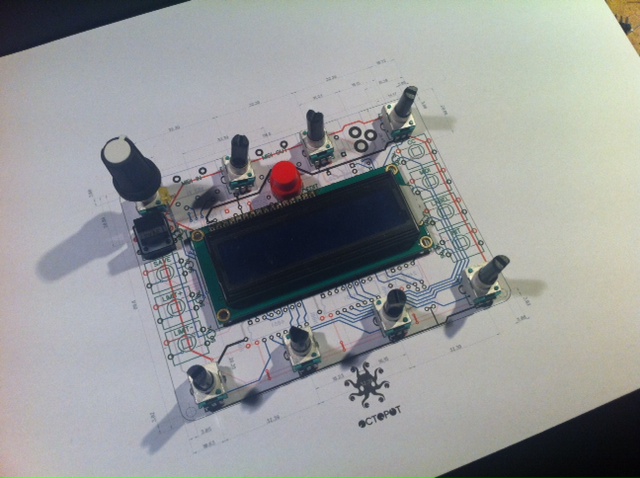

"note to self: always print out the designs first!"

That's exactly what Frank always said !

julian

I say this all the time as well.
If I'm doing it all the time is another question

borfo

How much would you want for the "ugly" boards?

dlyline

:> i have no problem with ugly.
the sockets are mounted to this board still right?

fcd72

what do i know of designing PCBs…..?

shiftr

I like one jullian! Looks like there is plenty space for drilling a hole next to the other hole.

tsv

I'm interested! How much are they?

Thanks

cj55

'ugly'board alone?
'ugly'board included in a kit with parts?
'ugly'board included in a kit with parts + backplate?

janniz

I'd take an "ugly board" as well.

admviolin

Ugly here!

aerror

me ugly!  ;;)

billieblaze

+!

owensands

This would be sick. I want to get the kit but if this is coming I'd wait. My eurorack would be happy with this integration.

sammy123

I can't wait for this!!

julian

i should get the matching standoff bolts over the next days.
then I'll send fcd72 a set for the new backplate

fcd72

HUA!

julian

We don't want you to get bored because you run out of work. What would Christmas be without the nice smell of freshly burned Acryl?

Costo

I just received all my NeinOhNein and AteOhAte PCBs from Stacey at Hexinverter, and don't mind about an "ugly" board myself if you still have some in stock, julian...

But the next run would be good as well, as I still have to solder most my modular anyways

aerror

you're so right julian, freshly burned acryl belongs to christmas like tin belongs to solder )

motobor

Is there any schematic for the trigger outs? I'd like to start building the case, but like to add the trigger outputs before. Would only need v-trigges for eurorack.

Varthdader

So, how is the trigger-out kit doing?

Do we have a back panel made?

fcd72

Nope for the Backpanel. Waiting for the final revision of the Board…..

julian

got the shipping confirmation for the propper boards today.
they should be here in a few days, then will go straight to fcd72 if I aimed for the correct hole position this time

Möbius

Very good news!
Will there be an extra firmware for it?

julian

no, runs with the stock firmware.
I still have to code the clock divider and fix the reset jack bug

Varthdader

Batch 1 pcbs (non-flat black) would need a Bootloader update right?

julian

no. batch 1 PCBs are missing the trigger IO expansion header and you have to solder some cables to the female mainboard connector.

Varthdader

Would these cables be the only thing or we need the bootloader update too?

I guess we´ll find out once the trigger kit is out, I am just being anxious... : )

loderbast

the firmware/bootloader already supports the trigger outs. just connect it and it will work.

loderbast

btw: with the batch1 LXRs one can also solder the expansion cable to the mainboard instead the mainboard connector on the pcb. it may be a bit messy, but no mess and flying cables can be seen through the case this way.
