Case/enclosure for LXR

1…78101213…18

Comments

  • mushmush
    Top dollar!
  • revtorrevtor
    Just got mine transferred to the metal case this weekend.  The case is awesome and gives the LXR the solid, HD case it deserves!  I like the light pipes, they really stand our bright and make the machine pop.  I hot glued them in from the inside so they stay in place and had to trim only one of 'em!

    great work.

    ~Steve

    (Acrylic case FS!)
  • AdrianAdrian
    edited March 2015

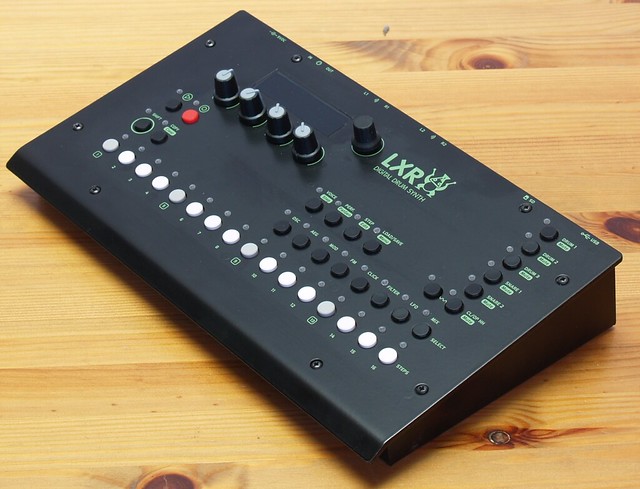

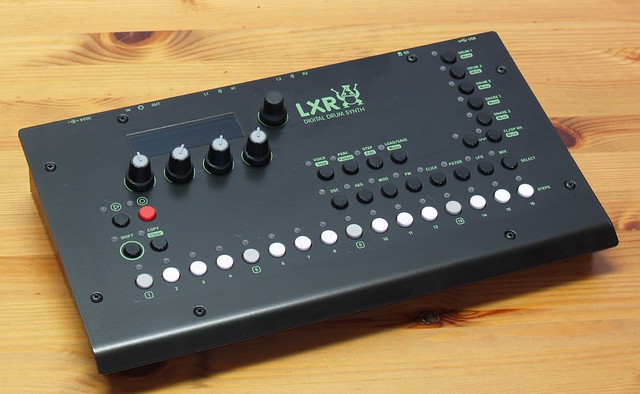

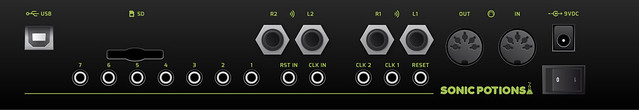

    Here are the print samples.
    In future there will be no fastening holes and no chost rings in face plate. There will be welded extra mounting plate for fixing PCB and the case. Also the faceplate will be slightly lighter.


  • MasarinMasarin
    Love it! Are you considering other colors too?
  • AdrianAdrian
    No other colors planned.
  • tb323tb323
    Looks excellent!
  • mushmush
    Looks ace. How soon can I get my dirty hands on it?
  • AdrianAdrian
    Another proto run is in manufacturing. They should be ready next week.
    If they are OK, then it takes another minimum 2 weeks to make the first production.
  • XirsoXirso
    Wow, very nice case and print!
  • dubtomsdubtoms
    It looks really gorgeous...what's the price already ?
  • BOKKBOKK
    it would be handy to have the initial 7 of the instruments in the first seven keys, what do you think?
  • APonsaAPonsa
    Hi, i'm interested on cases,
    how much cost?

    thanks
  • CTRLSCTRLS
    I seem to recall there was a post about where to buy new lightpipes (I guess I was sloppy in assembly and a few fell out in transit) but i can't seem to find it. Anyone got a good spot online? Couldn't find any locally.
  • papernoisepapernoise
    afaik lightpipes (sometimes also referred to as fresnell lenses) can be bought from all major electronics distributors like mouser, reichelt, farnell.
  • AdrianAdrian
    edited March 2015
    lmc020ctp, lpc020ctp are possible keywords where to start.
  • DipterePowDipterePow
    Hi everybody! I have just joined the forum; my LXR is under construction; I'm thinking about my home-made enclosure, and I wondered whether it were possible to have a file with the original front panel (maybe an .ai file) with the logo, cutting places...
  • DipterePowDipterePow
    Nobody to answer? :(
  • mixrastamixrasta
    maybe in the wiki, must be somewhere official....
  • DipterePowDipterePow
    Yeah, I found it! Thx a lot!!
  • mr_chielosmr_chielos
    @ adrian, do you allready know when they will be available?
    definitive price? How to order?

    Thnx for your answers,
    C
  • AdrianAdrian
    This project has the most prototypes I have ever made for one case.
    Working on screen print tone and welding quality.

    Cases will be sold in SP store.
  • JoeMattJoeMatt
    With the metal case I'm having an issue where some of the push buttons don't "snap" back very well and I have to sometimes press really hard for them to trigger. If I pop off the covers and just push the button with a poking tool (pen cap) they respond fine, so it's not the pushbuttons.

    Oddly, the bottom row all respond just fine, clicking and snapping back responsively. It's the black buttons, especially the function selection row, where they often stick. I notice they rub on the sides too and show some wear where they're under the case lid. I wonder if the black caps are just slightly fatter, cause I can't explain why the bottom row all work fine.
  • KargKarg
    Hey JoeMatt,

    I think the cases (I guess you mean the ones from Erica Synths) are powder-coated. By this, the layer of pain sometimes narrows the holes for the pushbuttons to much, which caused friction with the cap resulting in the behaviour that you describe.

    Carefully check the holes of the buttons that show the problem. Are there any point noses, etc? If so, take a small rasp, or the sharp edge of a knife/scissor and file it off. Your case should be fine then.
  • mushmush
    Adrian: Any ETA ATM?
  • AdrianAdrian
    This is getting ridiculous. I'm getting delivery times like next Friday, next Friday today it was don't know if will manage for next Friday.
    working on it.
  • venon303venon303
    edited June 2015
    Hi Folks
    Here you see my "homemade" enclosure. I Freak out while playing the LXR! Thanx Julian!
  • alektoalekto
    Any news on this? I keep waving my credit card at the screen but nothing's happening :-)
  • lineofcontrollineofcontrol
    That white one looks incredible...
  • PatrickPatrick
    any update ?
  • AdrianAdrian
    Slowly moving forward. Hope to get some things clear this week.
