Modification - Rearpanel switch, powerconnection
cause issue:
my 230V powerconnections are in a powerdistributor located on the floor and i´m unable to disconnect all the time powersupplys like the LXR PSU,
so its important for me to add a powerswitch on the LXR rearpanel.
in this case i don´t like too the pcb soldered powerconnection port.
solution
in first step i added a powerswitch fon a friends LXR,
(i´m soldered pinheaders to connect the cables with a 2 pin connector at beginning of the building - i replaced a jumper ..)

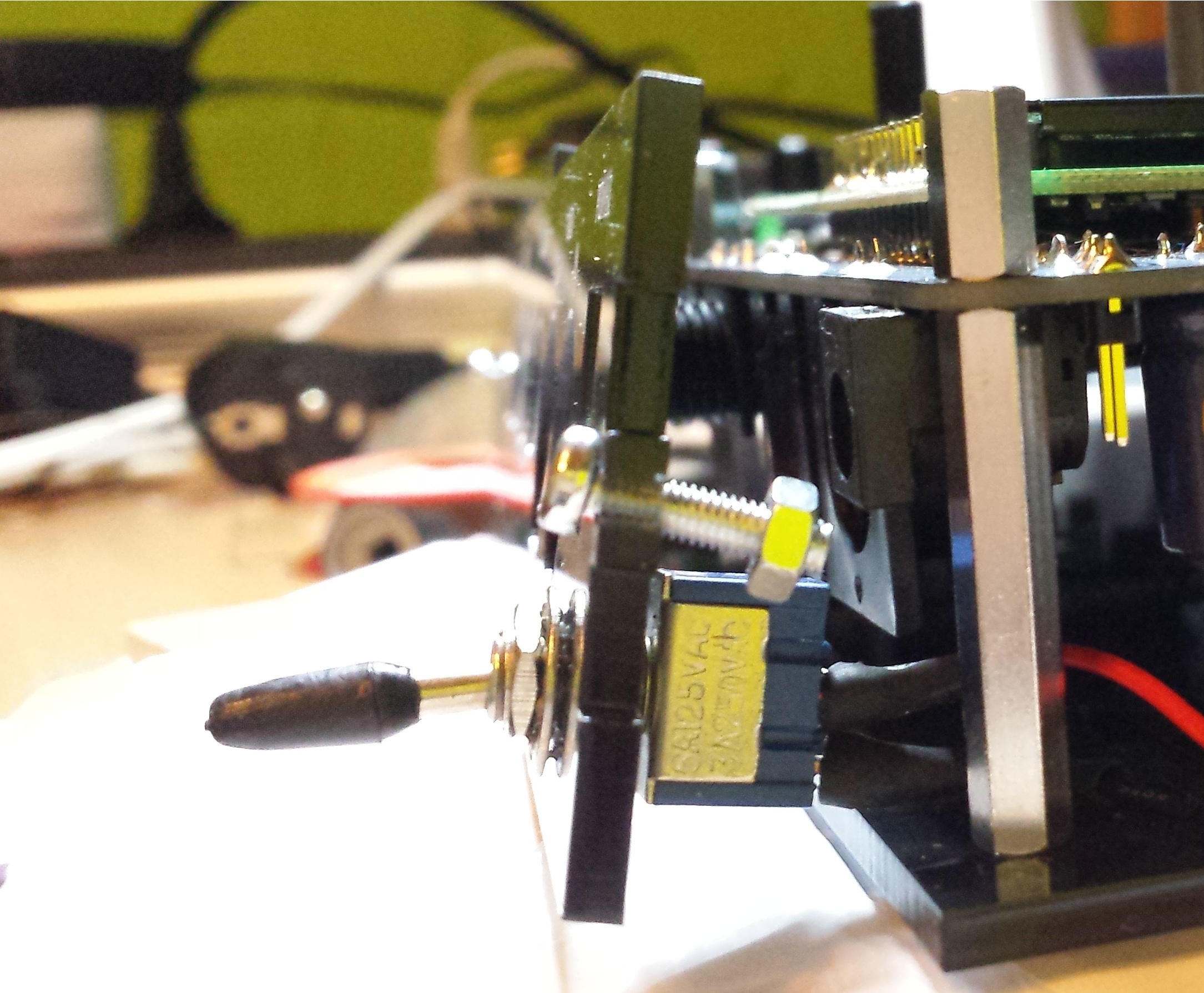

you can see in picture 2, that the powerconnection cable limited the switch usage a bit..
todo:

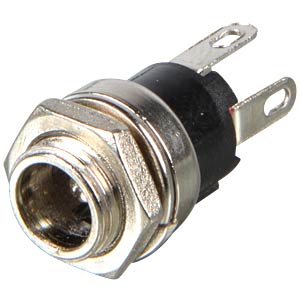

so i have to redesign the rearpanel without the powerconnection square cut, - later i place there 2 holes - one at the top for a switch and one for a powerconnection port ( see picture 3)
my new panel is on the way - i add more photos here later, or check my page in few days http://www.dsl-man.de/display/DSO/LXR+Drumsynth
my 230V powerconnections are in a powerdistributor located on the floor and i´m unable to disconnect all the time powersupplys like the LXR PSU,
so its important for me to add a powerswitch on the LXR rearpanel.
in this case i don´t like too the pcb soldered powerconnection port.
solution
in first step i added a powerswitch fon a friends LXR,
(i´m soldered pinheaders to connect the cables with a 2 pin connector at beginning of the building - i replaced a jumper ..)
you can see in picture 2, that the powerconnection cable limited the switch usage a bit..
todo:
so i have to redesign the rearpanel without the powerconnection square cut, - later i place there 2 holes - one at the top for a switch and one for a powerconnection port ( see picture 3)
my new panel is on the way - i add more photos here later, or check my page in few days http://www.dsl-man.de/display/DSO/LXR+Drumsynth
